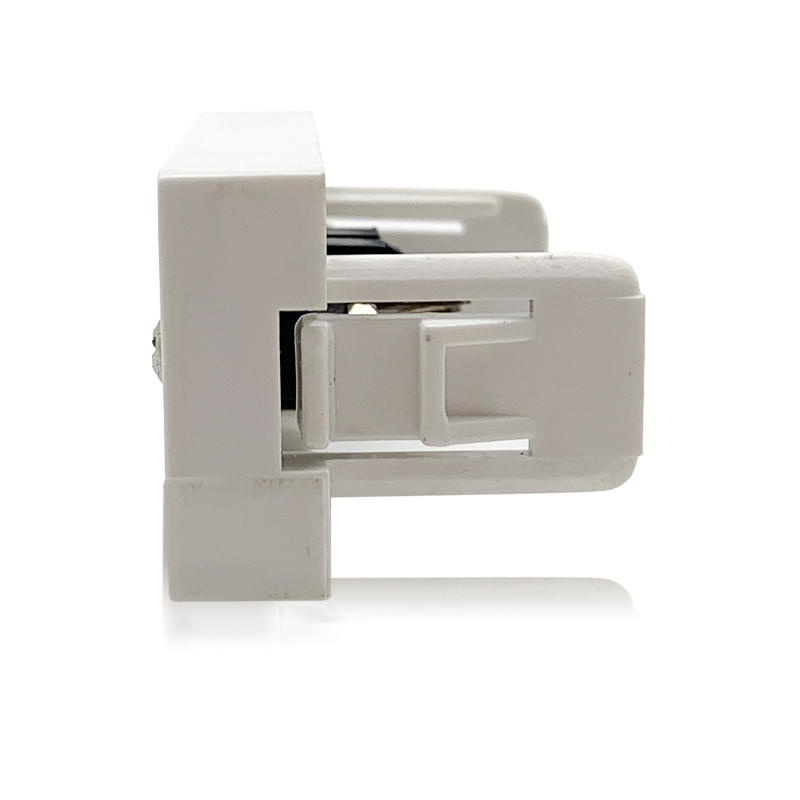

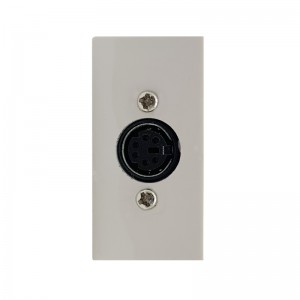

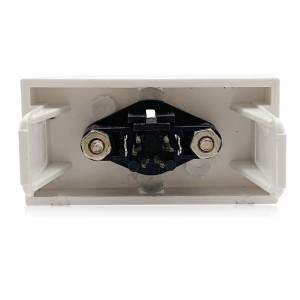

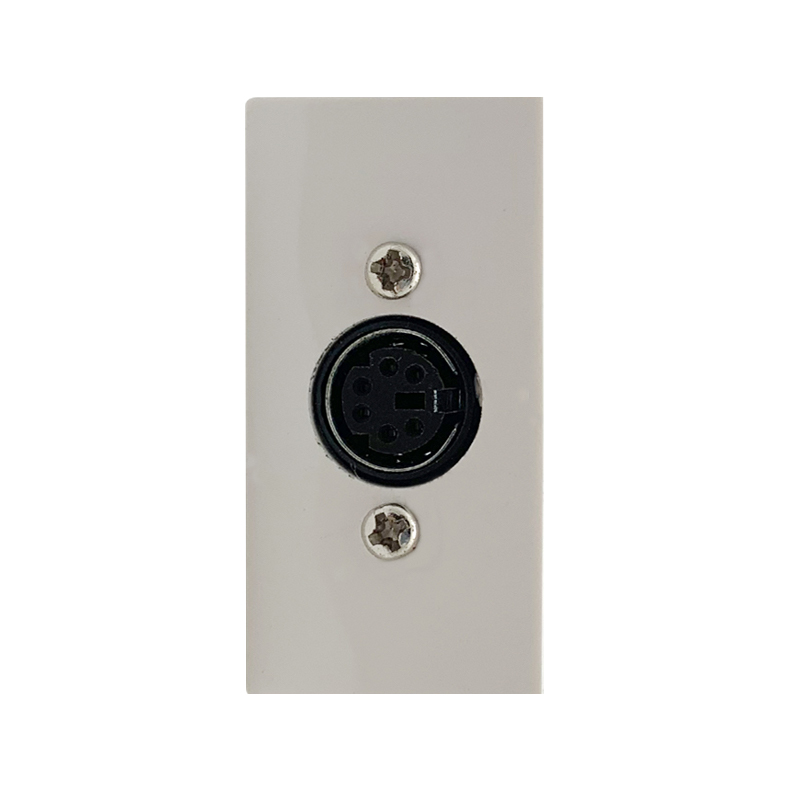

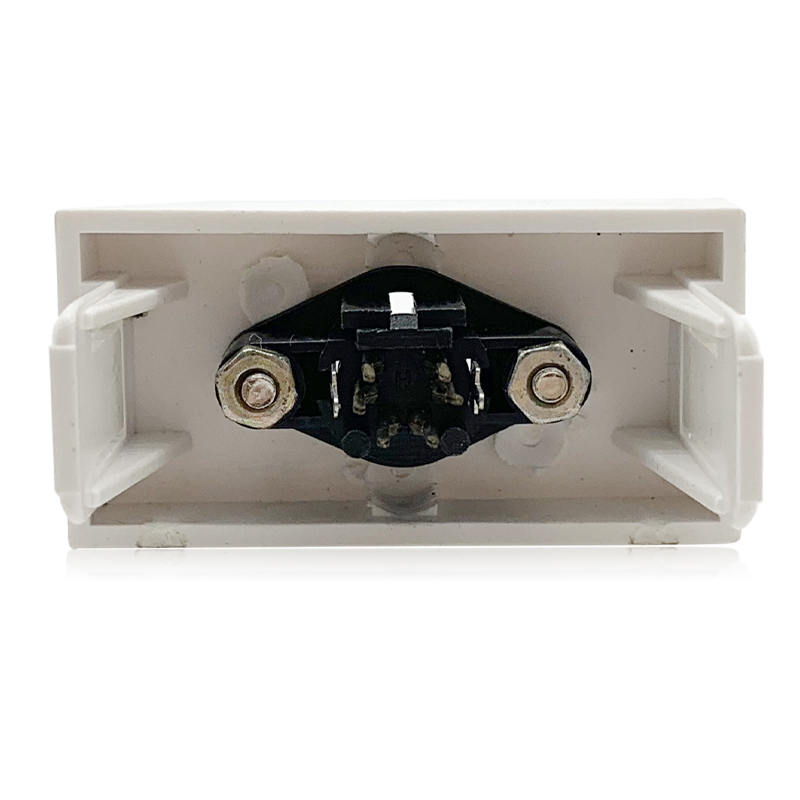

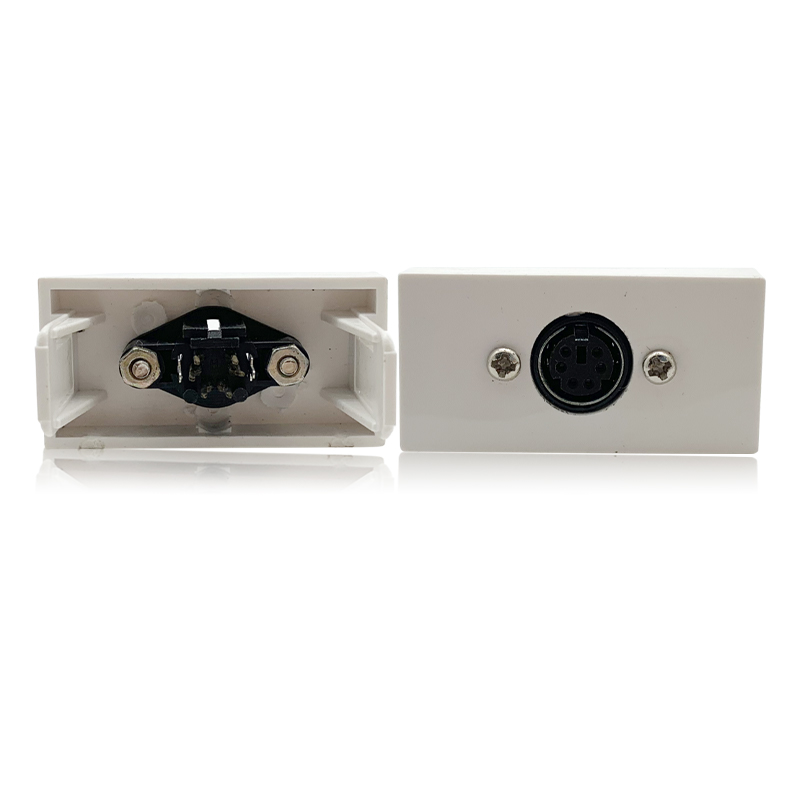

Safewire F71 22.5*45mm Metal Shell 8 Hole Sterminal Connector Sterminal Sockets

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Application

    RoHS

    Product Tags

    Temperature -40℃-70℃
    Withstand Voltage AC 500V/50Hz/min
    Rated Load DC 50V 1A
    Insertion and Extraction Force 3-30N
    Contact Resistance ≤0.03Ω
    Lifetime 5000Cycles
    Insulation Resistance ≥1
    Insertion and Extraction Force 5-30N



    Application:





    1.Feature of Safewire IP44 pop up 45×45mm  modules :



    1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.





    2.Easy-Installation:snap-indesign.





    3.Easy wiring,tooless installation,save cost!





    2.Advantage of Safewire IP44 pop up 45×45mm  modules:



    1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.





    2.More color with affordable MOQ.





    3.CE Certificated and supply with support,frame and coverplate accessories etc.





    3.Specification of Safewire IP44 pop up 45×45mm  modules:







    Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket







    A)Product dimension:





    B)catagories of Safewires 45×45mm modules :





    C)Safewires 45×45mm modules in cable management.







    RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of  substances:
