Safewire SFGLC-2 Stainless kitchen Wire power distribution Units modular socket

Application:

1.Feature of Safewire Counter top socket:

1.Customization OEM & ODM Production:Reasonable MOQ ≤100 Units.

2.304 Stainless / Chrome surface finish , more performance anti-corrosion & anti-oil

3.More optional color like Silver/Black/White/Graphite etc.

2.Advantage of Safewire Counter top socket：

1.IP44 pop up socket with shutter,hidden socket!

2.International 45×45 mm /86 type switch ,bluetooth, 4.2USB, PD USB Charger and socket.

3.Supply with GST or Cable Connector accessores etc.

3.Specification of Safewire Counter top socket:

Stainless socket/power distribution/PDU/power distribution Unit/power distribution Units modular wire/modular/power dock/countertop socket/Counter top outlet/kitchen socket/hotel socket furniture socket /Cable management system/ hidden socket sus socket

A) Product dimension:

B) Available installation modules/socket/accessories:

Installation Process

1. screw and fix the bottom box.
2. Fixing socket modules.Assembly the socket or data Jack into the plastic frame and press frame ensure them combine tightly.
3. Keep socket modules connected by inner wire (it should be copper core 1.5mm²9~20 wire and length should be suitable).Then earthing and ensure inner wire tightly with modules.

Attentions:

1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.

Safety Warning:

1)This is a class I product and must be earthed

2)This product must be installed/wired by a qualified electrician

3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off

4)For indoor use only

RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS)

Wall Flush-mounting on cabinet of kitchen, power supply for home-appliance and lighting on/off switch.

Features:

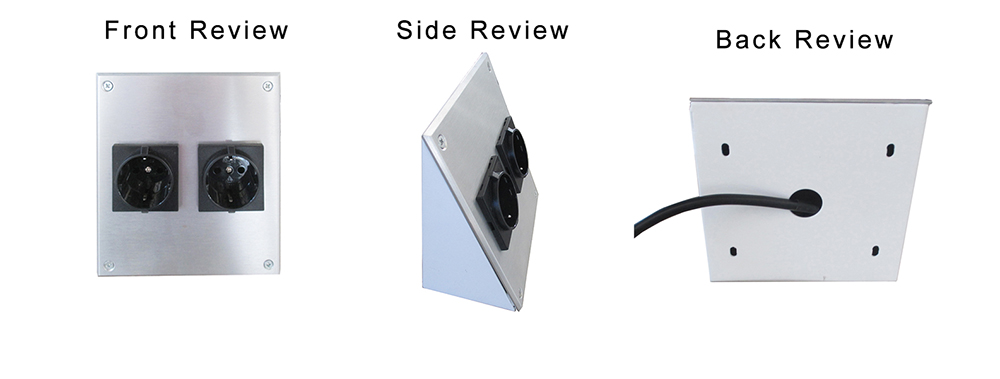

Safewire’s Wall Flush-mounting aluminum profile SFGLC-2 is application with electric on cabinet of kitchen, power supply for home-appliance and lighting on/off switch . Two power outlet socket or 1 power socket with 1 USB charger modules.

1).Aluminum profile material surface finished .

2).Flush-mounting on cabinet and power supply for home-appliance and lighting control.

3).Length and configuration is customization.

4).RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS)

5). Available for Safewire’s 45*45mm international socket and network modules.

The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.

Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
