| Serial No. | Parameter | Description |
| 1 | Panel Material |
Aluminum alloy |
| 2 | Surface finish |
Electroplated/Painted/Power sprayed |
| 3 | Panel Dimension(mm) |
220*110 |
| 4 | Cutout(mm) |
201×90 |
| 5 | Height of product(mm) |
85 |
| 6 | Bottom box size(mm) |
200*86*76 |
| 7 | Bottom box material |
Plastic |
| 8 | Capacity of modules /Interface size |
6 ways |
| 9 | Configuration |
Power outlet+Data outlet or USB charging : Customized as required |
| 10 | Cable length |
1.5m, 2m,2m or required length |
| 11 |
Available modules: |
45*45mm Type series |
Application:

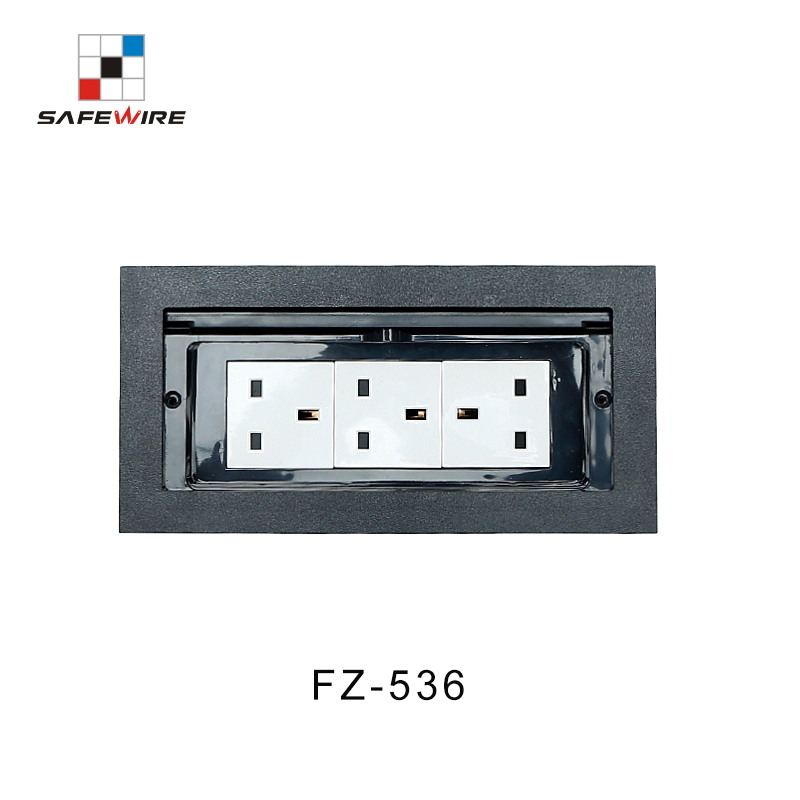

1.Feature of Safewire Recessed socket :
1.Modular design for Configuration of power supply and communication,45*45mm modular,86 type switch and Internation Brand data etc.
2.Recessed in the top of desk/table , simply press down to open it with Spring clip.
3.Be closed while device have been plugged in and without crushing the cables.
2.Advantage of Safewire Recessed socket :
1.Configuration and dimension can be customization.
2.Anodised Ev1 Aluminum/Brushing wire drawing flap , optional black poweder-coated housing.
3.Adjustable built-in frame fitting for more optional plug clearance.
3.Specification of Safewire Recessed socket:
Mount table socket/hidden socket/power dock/flush mounting socket/horizontal desk socket/multi-media box/desk top outlet/table modular/power module/recessed socket/recessed desk socket /recessed table socket/recessed table outlet/surface mount data/furinture outlet
A)Product dimension:
B)45*45mm modules&socket:
1.Open hidden structure: Open cover-plate when used and the plate is embedded into socket body inside.
2.With plastic bottom boxes;
3.Bigger capacity:6 ways international 45×45mm modules.
Available sockets or modules types:
