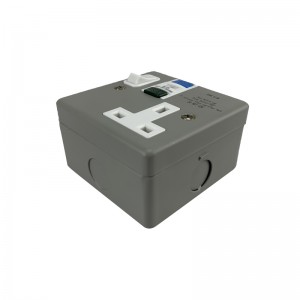

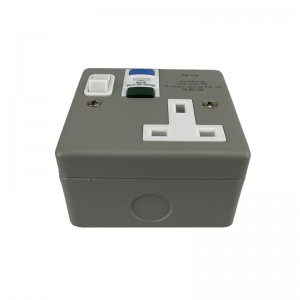

RCD 13A Metal Switch Single RCD Metal Socket, Switched

1.Non-Latching RCD (Sometimes called Active) – When the power is lost due to earth fault or power cut, the RCD isolates the circuit that it is protecting and remains off until it is manually reset. A must for protecting circuits supplying rotating machinery or some heating apparatus for example.

2.BS standard switch/unswitched socket:

BS standard socket outlet for protect the appliance user against earth faults evev in the situation where the Live and Neutral have been reversed.

3.Tripping current is 30mA:

Ideal for anywhere where personal protection is required when using electrical appliances and equipment,minimizing the risks of fatal electric shocks to people. Perfect in the household environment, especially in the kitchen, bathroom, and other high usage areas.

Principle of RCD Operation

An RCD protects by constantly monitoring the current flowing in the live and neutral wires suppling a circuit or an individual item of equipment. Under normal circumstances, the current flowing in the two wires is equal. When an earth leakage ocours due to a fault in the circuit or an accident with the equipment, an imbalance occurs and this is detected by the RCD, which aumtoatically cuts off the power before injury or damage can result.

Warranty:

12 months after date of B/L from Safewire Electrical Co.Ltd.

 Safety Warning：

Disconnect the rcd unit prior to insulation test.

Applicable to Low-voltage equipment,home appliance and Safewire’s floor box enclosure.
