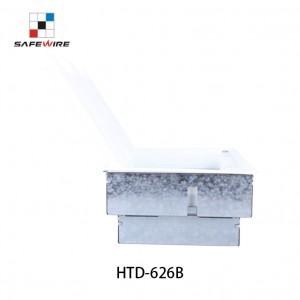

Quick Details:
| Serial No. | Parameter | Description |
|
1 |
Safewire item |
HTD-626B-86 |
|
2 |
Material of cover plate |
ABS |
|
3 |
Material of base |
Thickness 0.9mm galvanized mild steel |
|
4 |
Overall Frame & Lid (mm) |
320.5*230.5 |
|
5 |
Compact floor cut-out(mm) |
(305-310)*(210-215)*115mm |
|
6 |
Thickness of concavity/Frame lid recess (mm) |
8 |
|
7 |
Installation depth(mm) |
115mm |
|
8 |
Plug top clearance(mm) |
45~70 |
|
9 |
Available modules |
3/4 compartment 86mm/146mm/45mm/120mm ways modules international socket |
|
10 |
Accessories plates |
90*80mm |
Application:

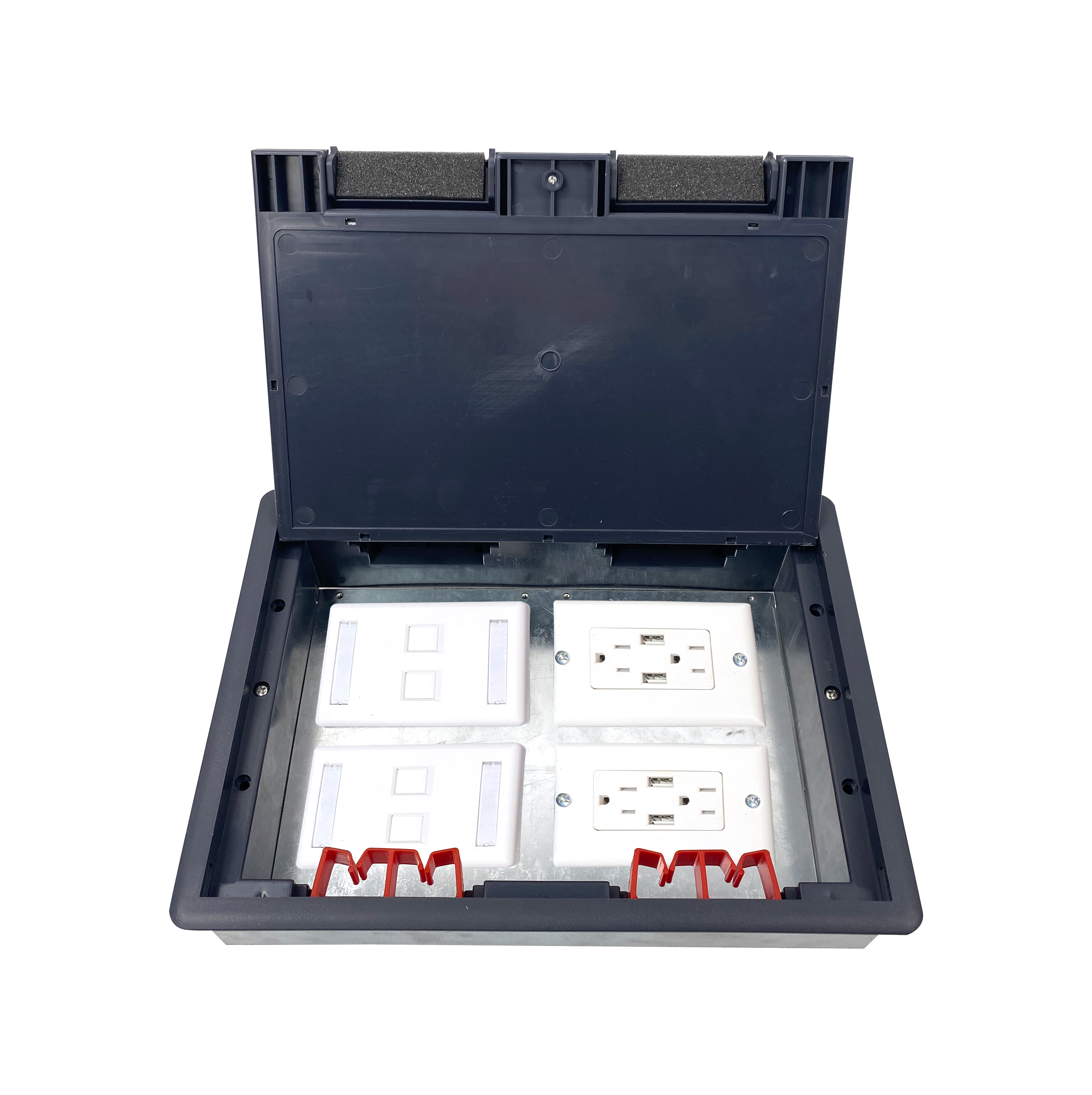

1.Feature of Safewire floorbox:

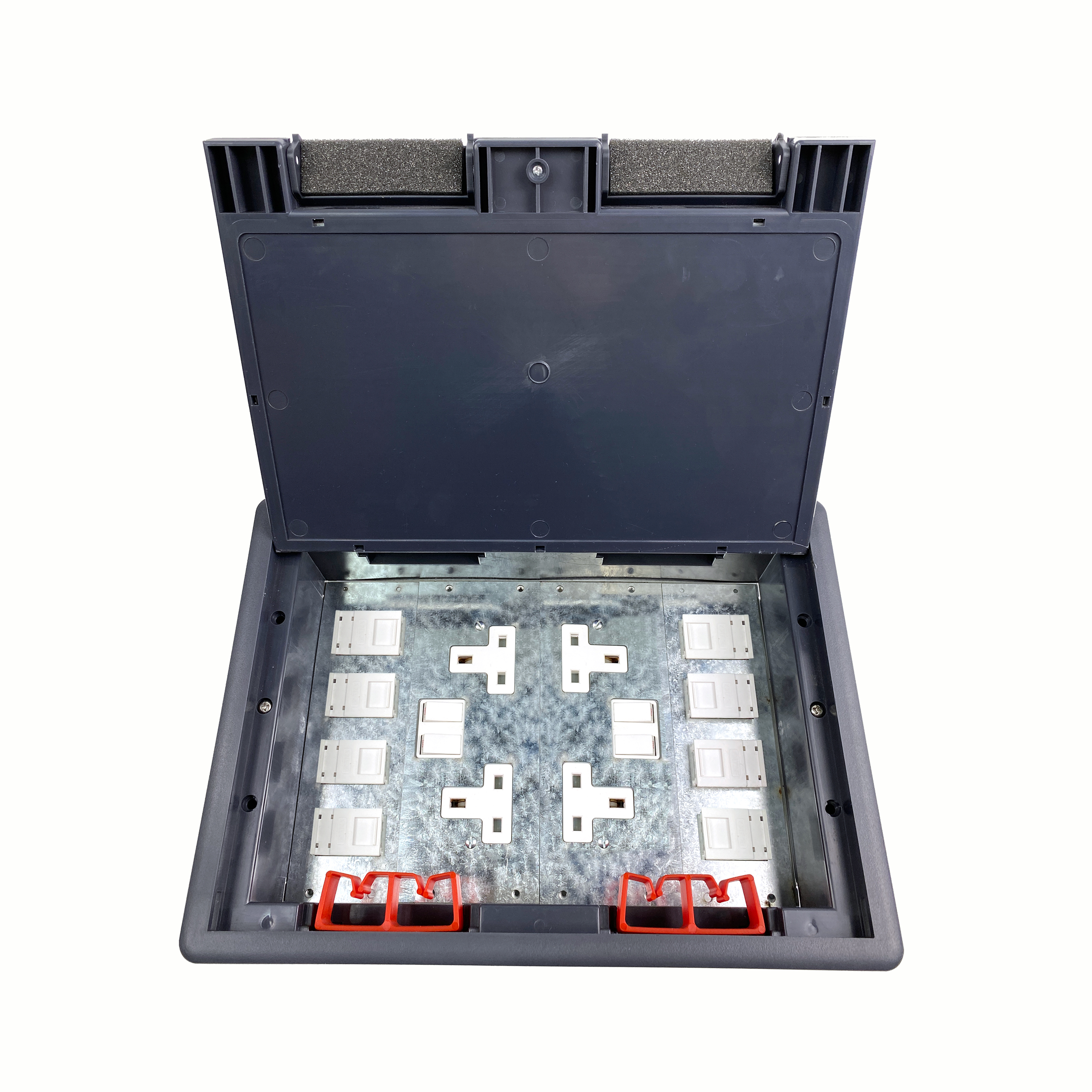

1.More capacity:8,12,16,24 way 45*45mm modules ; or 3/4 compartments bridges

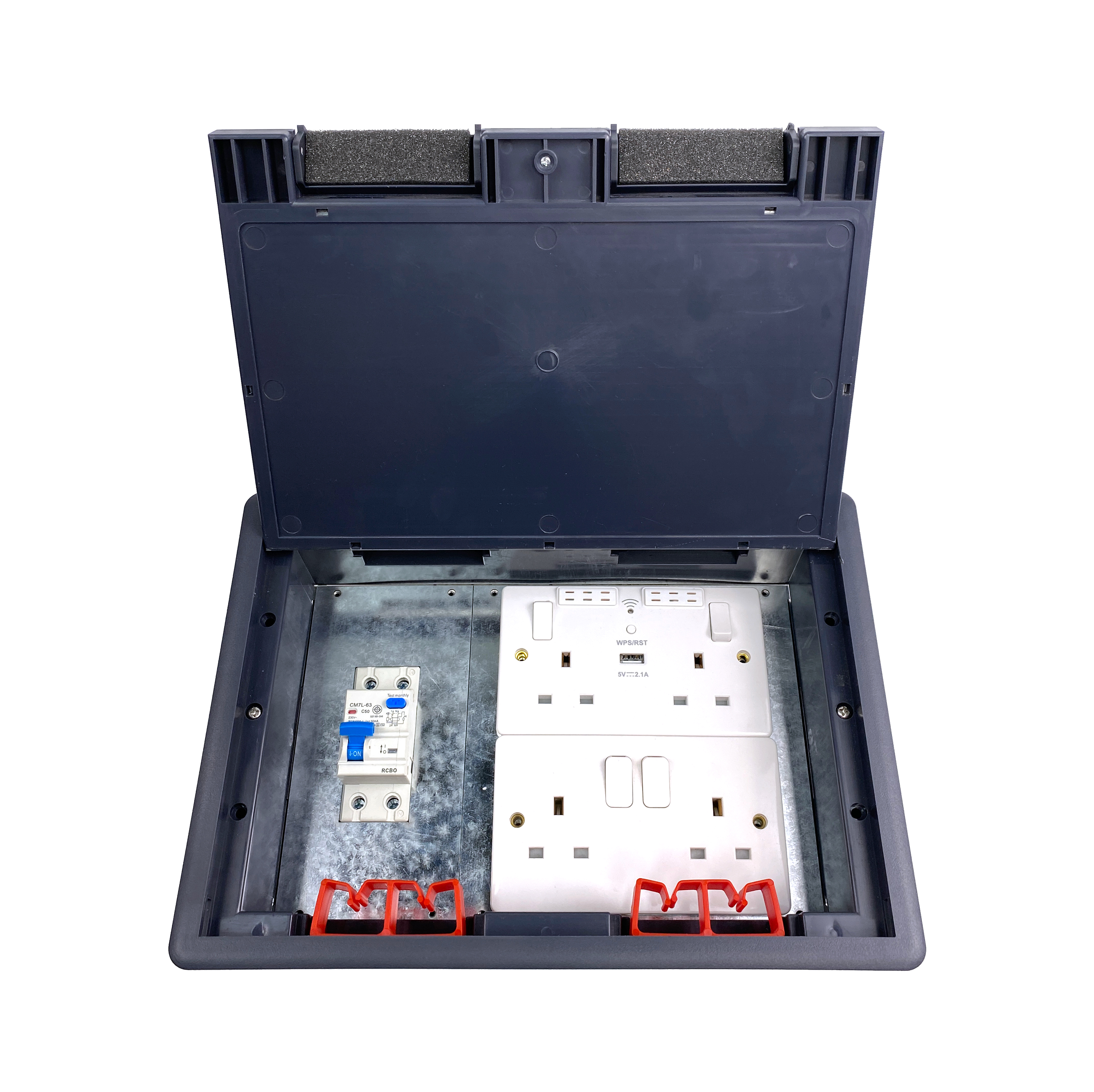

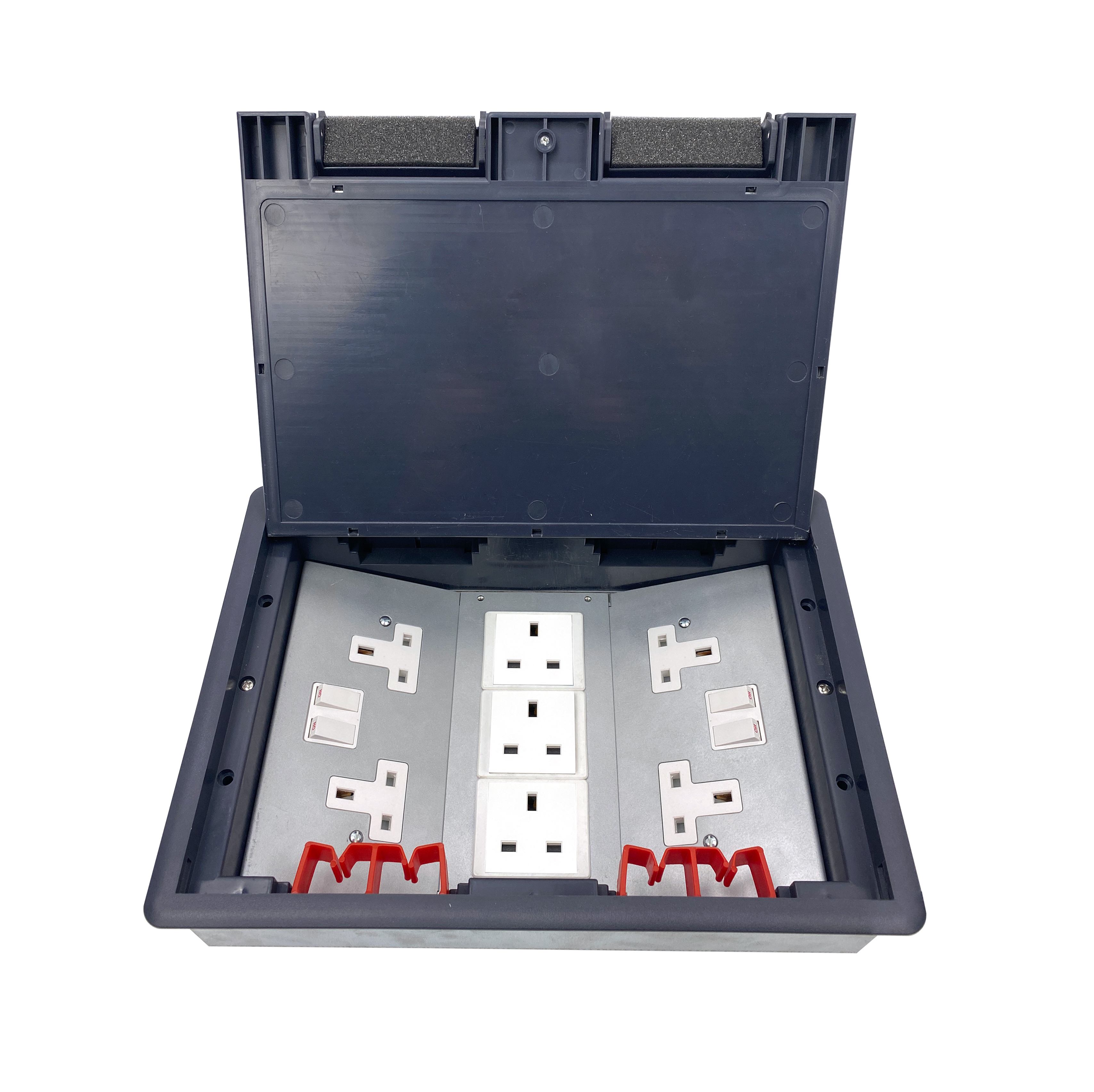

2.More optional switch & socket: International 45*45mm modules,86 type,120 type etc.
3.More optional installation:Horizontal,Side-mounting, Side-mounting & Horizontal;

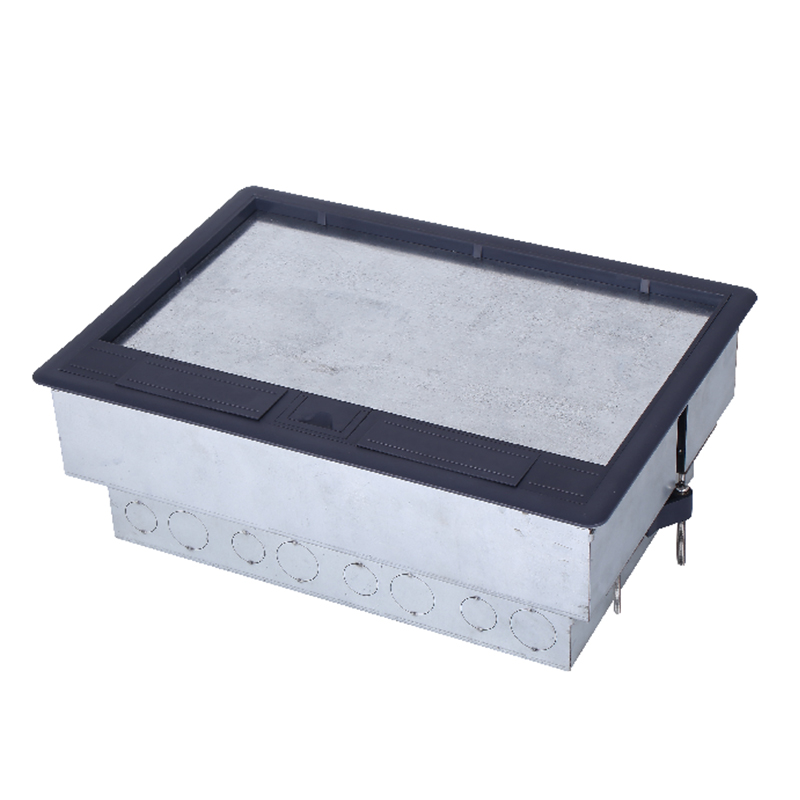

4.More optional box for raised floor or concrete floor: Galvanized box, Stainless steel box and plastic box etc.
Specification of Safewire floorbox :
TUV CE certificated+access floor boxes/cavity floor boxes/underfloor bottom boxes/floor socket outlet/carpet box/service outlet box/floor box/concrete floor boxes/cable managment
A)Product dimension:
B)Safewire floorbox Application in different floor system:
Installation instructions:
1.For concrete floor
Align floor box in centre as delivered.Bend open ears and fix to raw ceiling.
2.For raised floor
Put under floor box into cut out and adjust height.Put under floor box into hole/location of raised floor.Then move the adjustable screw in clockwise direction until screws are tightened with flooring.lead the lines into plastic bottom box.
1)Installing Heavy current/Data systems
Insert heavy current devices from the top and connect from below and snaptabs into the frame;Insert connected data Jacks from below into the plate,Fasten equipped plate accordingly.
1.Lay -out box in floor (first step)
2.into 3/4 compartment ( Second step)
3.Connecting and earthing.( Third step )
Connect heavy carrent/Data with the lines which are lead into bottom box.And connect earthing lines of floor cable systems with earthing screw of bottom box torgue＞0.4N.m.Verify reliable and safe.
Wiring circuit diagram：
Available pre-wired with tap-off or supplied unassembled.
Remark：
Neutral line: blue
Fire line: Brown
Ground wire: yellow-green
4.Slide switch socket vertical plate
1)The bottom box outlet hole and screw hole are stretched 2) Anti-rust film to prevent scratching
5.Grounding：
（Flat head with star washer of earth in base and all cord be fited with terminals）
6.Assembly and plug into underfloor box.
Inset heavy carrent and low carrent plugs into frame.
7.Levelling to floor
Lead heavy and low current plug cable cord from edge lord outlet lid.Fill the sunken area of panel neatly with filling stuff according surface material of floor .Adjust under floor box height flush over the four levelling screws.
