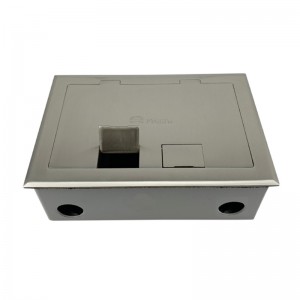

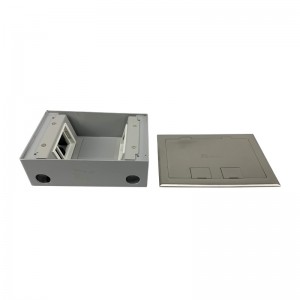

H62 Brass Residential Floor Boxes Screw Lid/Electric Plug Socket

Short Description:


  • Port: Wenjiang
  • Technical Parameters



    Product Tags

    Serial No. Parameter Description


    Panel Material Brass alloy/Stainless-steel
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 210*145
    4 Cutout(mm) 200×135
    5 Capacity of modules 8 ways modules
    6 Mounting type Horizontal installation
    7 Bracket material Zinc Alloy & Alu Alloy
    8 Base box dimension(mm) 200*135*75
    9 Available modules 45*45/22.5*45(mm)



  • Previous:
  • Next:

  • 1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .

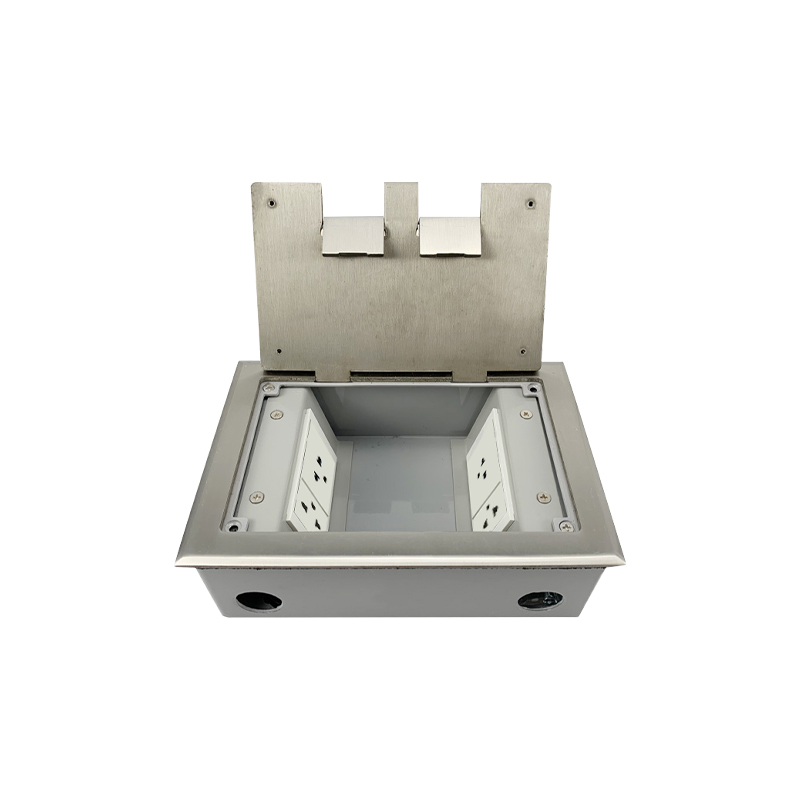

    2.Modules Inside installation:horizontally/side-mounting.

    3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .

    4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.

    HTD-120K官网文案A200423 OK H-1

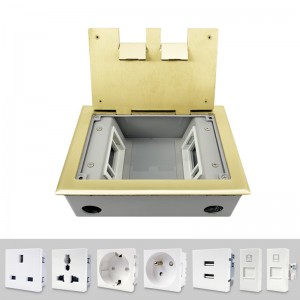

    Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
