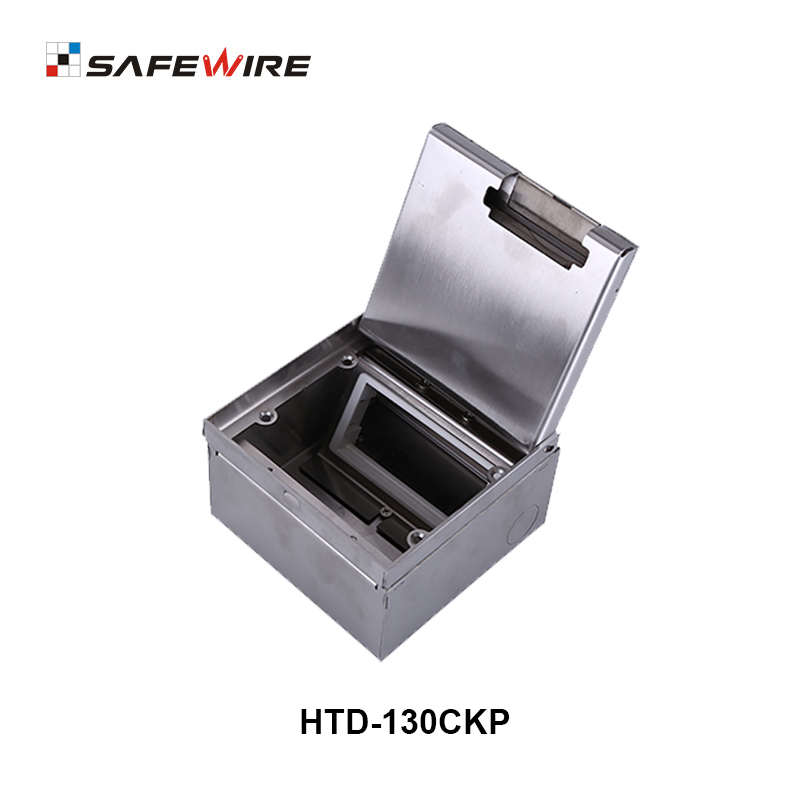

Safewire HTD-130-CK Underfloor bottom boxes TUV CE certificated access floor boxes floor socket outlet EV charging station

Safewire HTD-130-CK Underfloor bottom boxes TUV CE certificated access floor boxes floor socket outlet EV charging station Featured Image

Short Description:

1) Working environment:

The environment temperature:-5℃~/40℃
The rated voltage：100V~~250V
Rated current：10A、13A、16A、20A

Port: Wenjiang

Send email to us Download Product datasheet

Technical Parameters

Product Show:

Product Tags

Quick Details:

Serial No.	Parameter	Description
1	Safewire item	HTD-130-CK
2	Surface finish	Wire drawing/Polishing/Spray painting
3	Panel Dimension(mm)	130*130
4	Cutout(mm)	130*130
5	Static pressure	1000N
6	Horizontal mounting	side mounting gangs
7	Sink box Material	Steel+Zinc plated
8	Thickness of concavity/Frame lid recess (mm)	20MM
9	Base box dimension(mm)	130130125
10	capacity	345type socket or 186 type socket

Application:

1.Feature of Safewire floorbox:

1.Customzation design & production: ODM & OEM as per samples or drawing by each of us.

2.Supply with SKD parts or finished products, save cost: save cost, save money for you!

3.Flush-mounting & Recess-mounting in Access floor & Recess floor

2.Advantage of Safewire floorbox :

1.Patent Retractable cable entry design:

2.More affordable MOQ less than 100 units:

3.More internation socket , multimedia and Data accessories :

3.Specification of Safewire floorbox :

A)Product dimension:

B)Available installation modules/socket/accessories:
