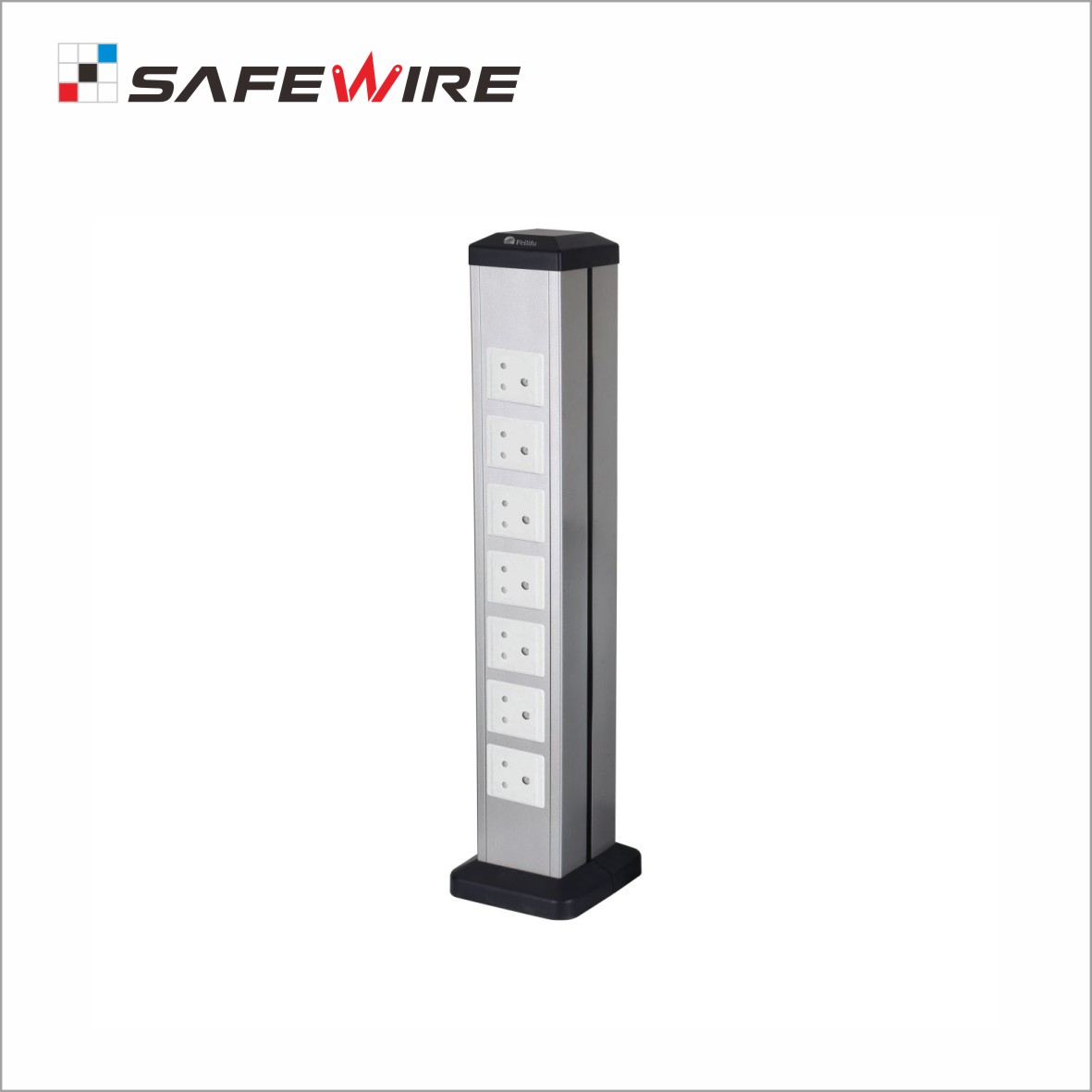

Quick Details:
| Serial No. | Parameter | Description |
|
1 |
Safewire item |
FZ-532A/B |
|
2 |
Power supply side |
Two side |
|
3 |
Shape column |
square |
|
4 |
Panel Material |
Aluminum alloy |
|
5 |
Surface finish |
Painted/Brushed Oxygenated |
|
6 |
Height of product(mm) |
350 for FZ-532A |
|
7 |
Height of product(mm) |

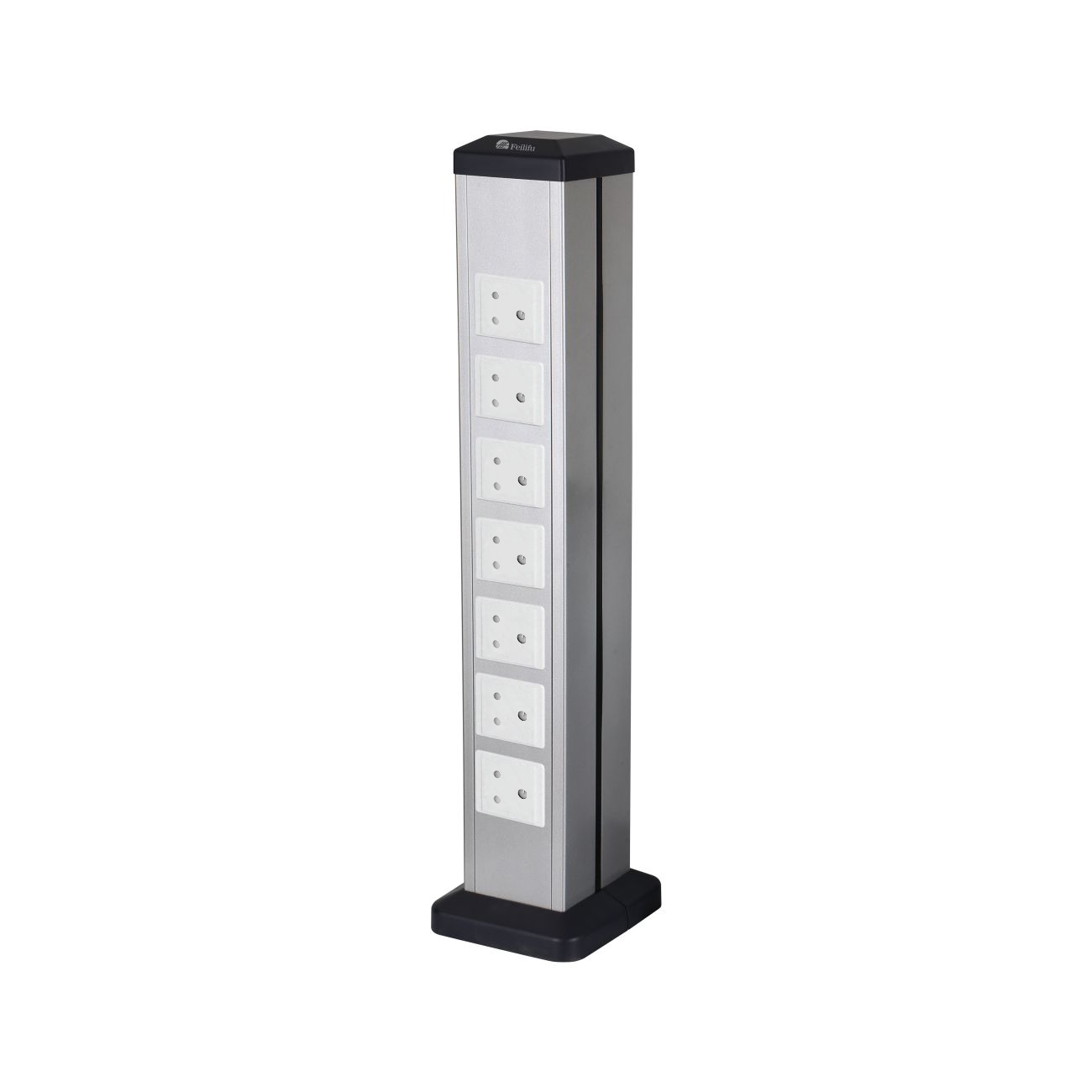

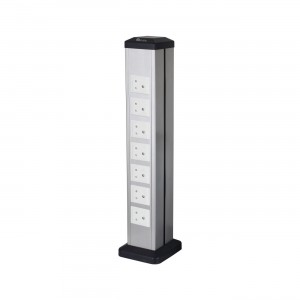

660 for FZ-532B |
|
8 |
dimension (mm) |
151*159 |
|
9 |
Capacity of modules |
45*45/45*22.5(mm) modules |
|
10 |
Configuration |
Power outlet+Data outlet or USB charging+HDMI+VGA+Audio socket : Customized as required |
Application:
1.Feature of Safewire Mini-column:
1.Easy plug in/out:
2.More power socket &Data:
3.ODM Design for height & Input
2.Advantage of Safewire Mini-column :
1.IP44&IP66 IP Level:
2.Supply with Wire&Input cable
3.Customization design such as base, cover & outlet:
3.Specification of Safewire Mini-column :
A) Product dimension:

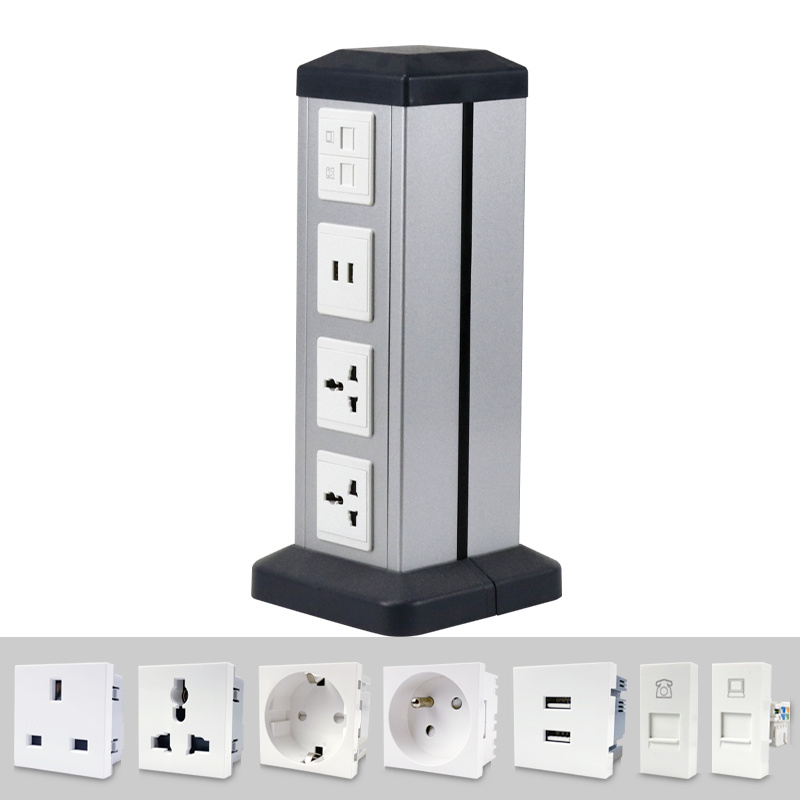

B)Available installation modules/socket/accessories:

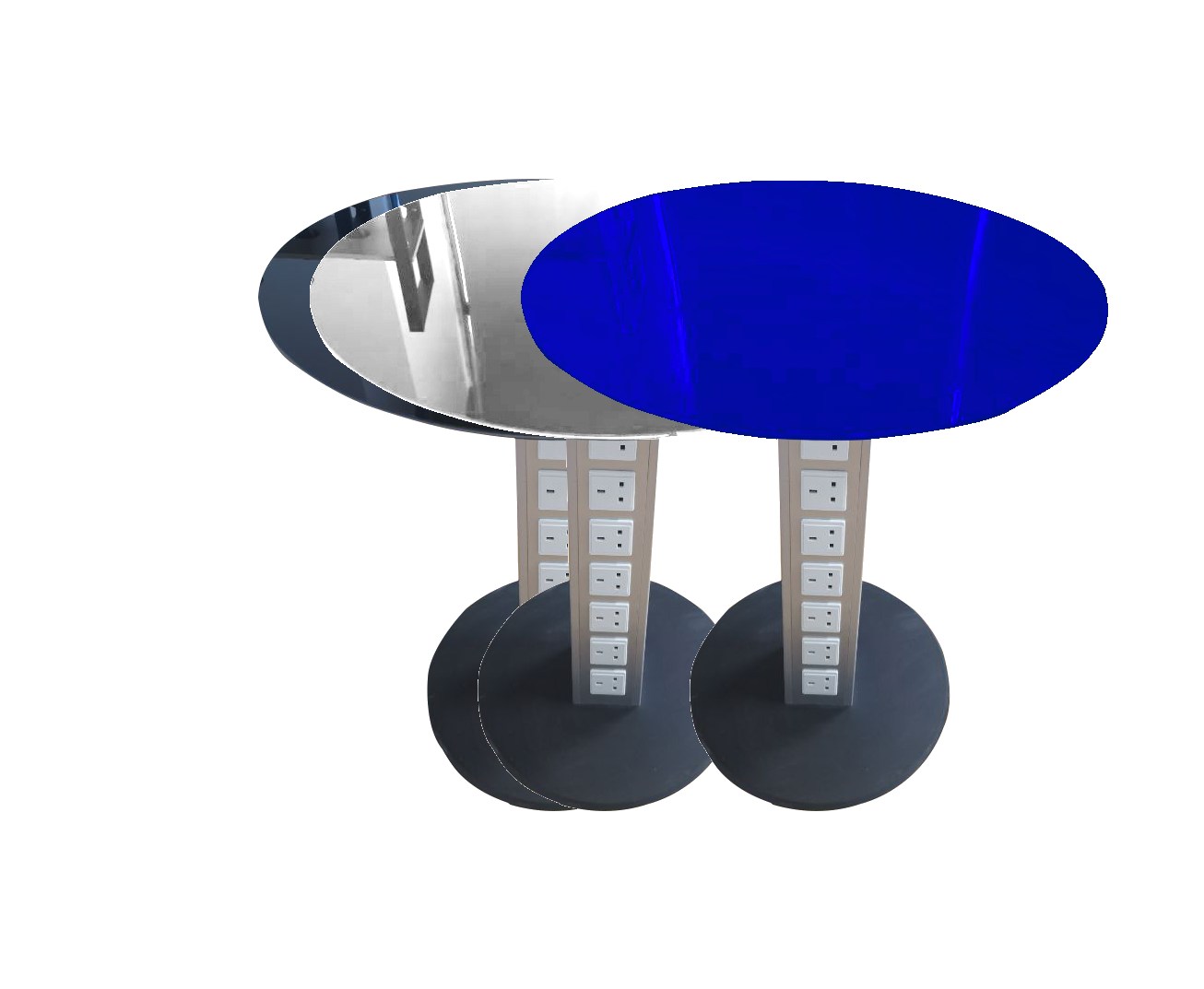

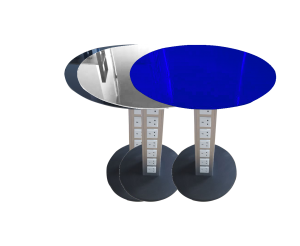

C)Safewire’s Mini-column Application in different system
Attentions:
1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
2. All dimension quoted are nominal only. Drawings , images and text are for illustrative purposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed
2)This product must be installed/wired by a qualified electrician
3)before installation/maintenance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off
4)For indoor use only
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
