| Serial No. | Parameter | Description |
| 1 | Panel Material |
Aluminum alloy |
| 2 | Surface finish |
Electroplated/Painted/Power sprayed |
| 3 | Panel Dimension(mm) |
265*130 |
| 4 | Cutout(mm) |
254*116 |
| 5 | Height of product(mm) |
75 |
| 6 | Bottom box size(mm) |
252*114 |
| 7 | Bottom box material |
Plastic |
| 8 | Capacity of modules /Interface size |
9 ways 45*45mm modules |
| 9 | Configuration |
Power outlet+Data outlet or USB charging : Customized as required |
| 10 | Cable length |
1.5m, 2m,2m or required length |
Application:

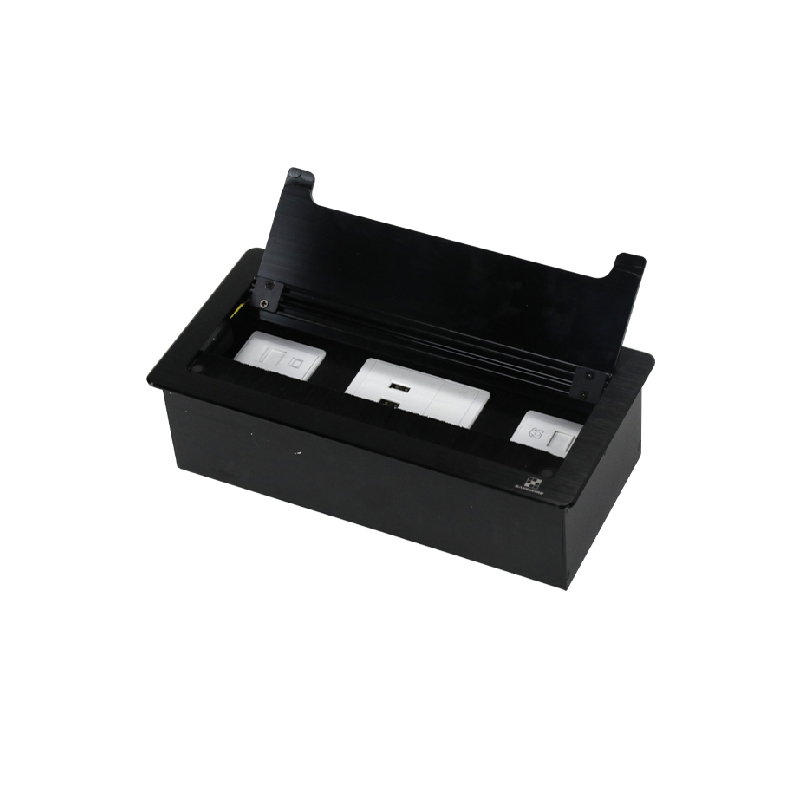

1.Feature of Safewire Recessed socket :
1.Modular design for Configuration of power supply and communication,45*45mm modular,86 type switch and Internation Brand data etc.
2.Recessed in the top of desk/table , simply press down to open it with Spring clip.
3.Be closed while device have been plugged in and without crushing the cables.
2.Advantage of Safewire Recessed socket :
1.Configuration and dimension can be customization.
2.Anodised Ev1 Aluminum/Brushing wire drawing flap , optional black poweder-coated housing.
3.Adjustable built-in frame fitting for more optional plug clearance.
3.Specification of Safewire Recessed socket:
Mount table socket/hidden socket/power dock/flush mounting socket/horizontal desk socket/multi-media box/desk top outlet/table modular/power module/recessed socket/recessed desk socket /recessed table socket/recessed table outlet/surface mount data/furinture outlet
A)Product dimension:
B)45*45mm modules&socket:
Installation Guide：
1. Before installation, please opening pore on the table-board which is asked to install according to related product specification.(unit:mm)
2.Load the function key panel into a base box.
3.Secure the panel and bottom box
4.Secure the surrounding bottom box with eight screws
5.Place the product in a pre-opened table top
Attentions:
1.Use only in normal temperature.Do not expose to conditions that harm to the product’s safety,such as humidity,dusty and corrosives.
2.Properly connecting and installing according to the rated voltage ,frequency,rated current and function identification of the product
3. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed.
2)This product must be installed/wired by a qualified electrician.
3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off.
4)For indoor use only.
1.Office and education
2.Industry and Engineering
3.Presentation and retail;
4.Orientation and safety;
5.Transit areas and parking;
6.Hotels, hospitality and wellness;
7.Health, sport and leisure;
8.Art and culture;
