| Serial No. | Parameter | Description |
| 1 |
Material |
Zinc Alloy/Steel |
| 2 | Panel Material |
Aluminum alloy |
| 3 | Surface finish |
Electroplated/Painted/Power sprayed |
| 4 | Panel Dimension(mm) |
170*123 |
| 5 | Cutout(mm) |
148*115 |
| 6 | Height of product(mm) |
97.6 |
| 7 | Bottom box size(mm) |
146*113*95 |
| 8 | Bottom box material |
Plastic |
| 9 | Capacity of modules /Interface size |
4 ways 45*45mm modules |
| 10 | Configuration |
Power outlet+Data outlet or USB charging : Customized as required |
| 11 | Cable length |
1.5m, 2m,2m or required length |
| 12 |
Available modules |
45*45mm Type series |
Application:

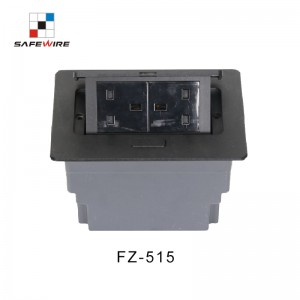

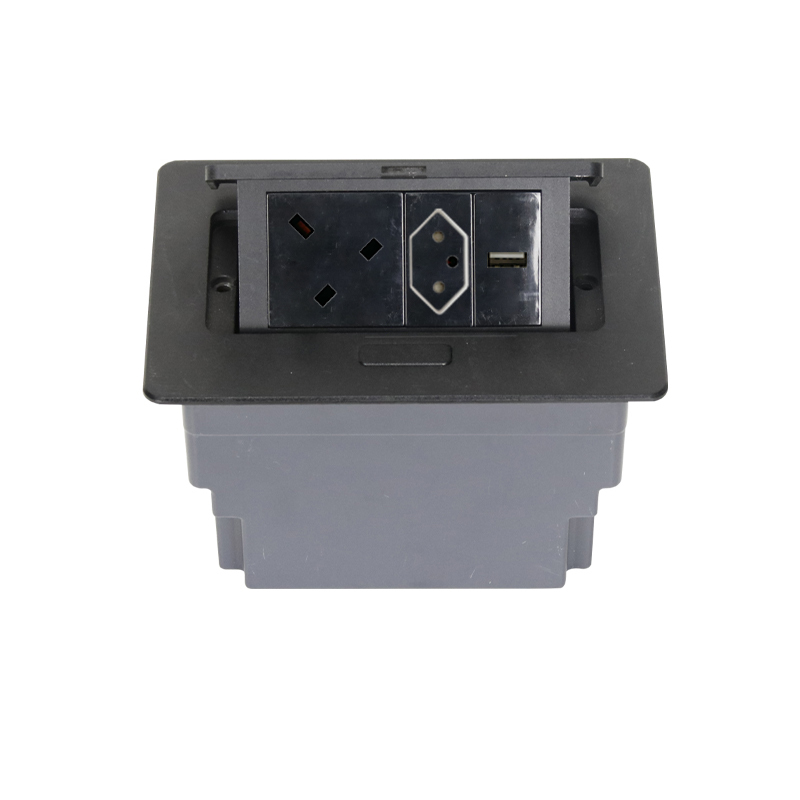

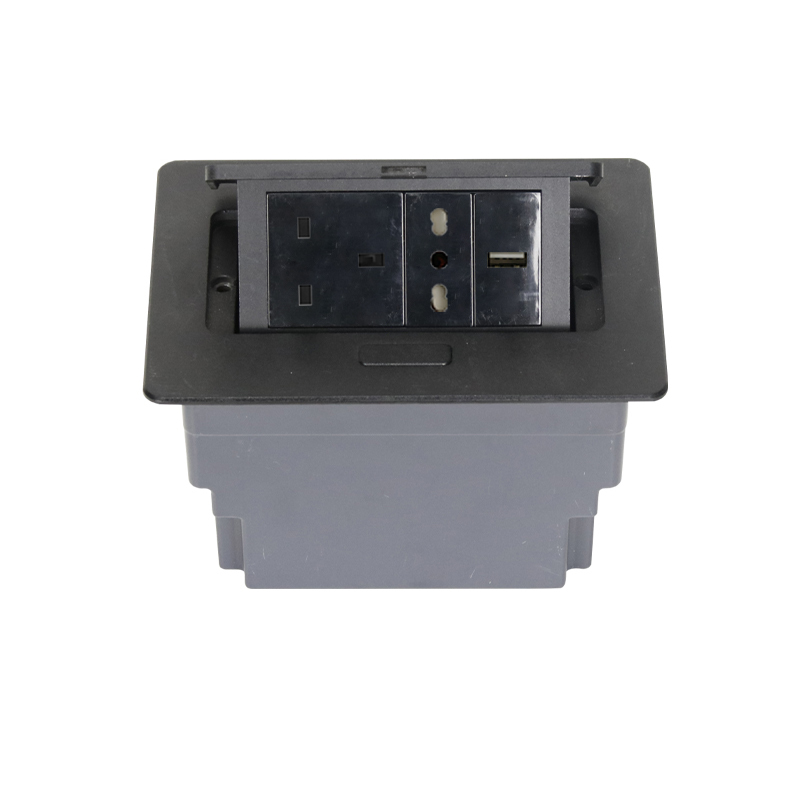

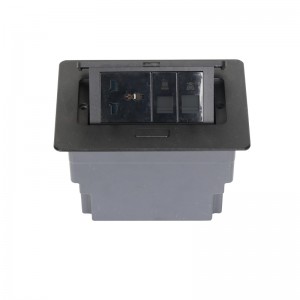

1.Feature of Safewire pop up desksocket :
1. 6 ways ,4 ways,45*45mm power Socket & Data
2.Black/White/Silver/Gold/Graphite/Nicket chrane etc.
3.2 bridge empty enclosure or complete socket with plug cable.
2.Advantage of Safewire pop up desksocket :
Table socket / power socket/service outlet office socket/furniture socket table power outlet/pop up socket/hotel socket/table recess console/power dock table mounts socket
1.IP44,Aluminum alloy plate + UL94 PC fire retardant box , More higher insulation,more safety.
2.45mm snap-in socket+ 2 bridge support + screw fixing box,Easy Installation& replacement save labor cost.
3.45 degree/180 degree plug with socket + IP44 pop up 45mm socket with shutter,more best plug.
3.Specification of Safewire pop up desksocket:

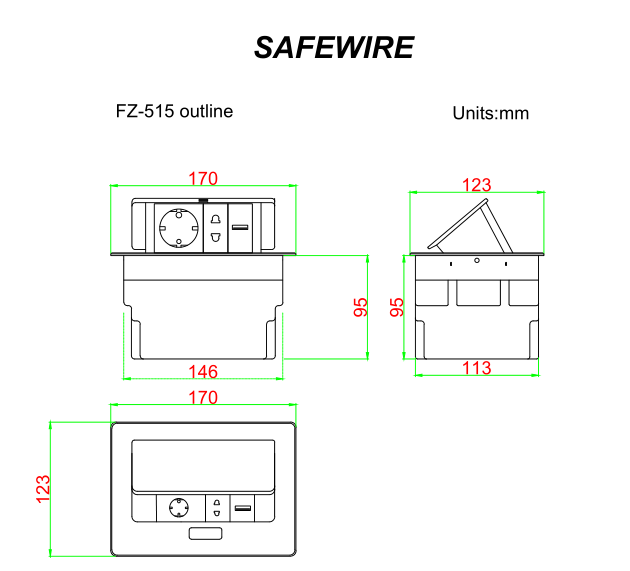

A)Product dimension:
B)45*45mm modules&socket:
Installation Process
- Cut out as specification sheet.
- put the bottom box into cut-out hole,punch the self-tapping screw and fix the bottom box.
- Remove plastic frame fixing socket modules.Assembly the socket or data Jack into the plastic frame and press frame ensure them combine tightly.
- Keep socket modules connected by inner wire (it should be copper core 1.5mm29~20 wire and length should be suitable).Then earthing and ensure inner wire tightly with modules.For fast connector terminal block,Just insert wire into block.
- Phone line ,TV receiving line sound box wire（it should thin wire）Just the wire length and tighten stop screw comathen.
- Put the panel on the bottom box and it with the hole.
Attentions:
1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed
2)This product must be installed/wired by a qualified electrician
3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off
4)For indoor use only
