Technical parameters & characteristic :
1) Working environment:
- The environment temperature:-5℃~/40℃
- The rated voltage：100V~~250V
- Rated current：10A、13A、16A、20A
2) Characteristic:
|
1 |
Model | FD-777-B |
6 |
HS Code | 8536690000 |
|
2 |
Brand Name | Safewire or OEM brand |
7 |
Market standard | Customized |
|
3 |
Type | Desktop socket |
8 |
Place of origin | Zhejiang , Wenzhou, China |
|
4 |
Color | Silver/black/white |
9 |
Frequency | 50Hz~60Hz |
|
5 |
Grounding | Standard grounding |
10 |
Current Type | AC |
3) Technical parameters :
| Serial No. | Parameter | Description |
| 1 | Item | FD-777-B |
| 2 | Application: | Residential ,Industrial or public |
| 3 | Panel Material | Brass alloy & nickel plated brass |
| 4 | Color: | Golden, sliver，black，red，etc |
| 5 | Surface finish | Wire drawing/Polishing/Spray painting |
| 6 | Grounding: | Standard Grounding |
| 7 | Damping device (DP): | Only normal Pop-up without damping device |
| 8 | Available modules: | 3 ways 45 type modules |
| 9 | Panel Dimension(mm) | 143*136 |
| 10 | Cutout(mm) | 122×122 |
| 11 | Capacity of modules /Interface size | 3 ways modules |
| 12 | Bracket material | Zinc Alloy & Alu Alloy |
| 13 | Sink box Material | Steel+Zinc plated |
| 14 | Sink box Thickness: | Ga steel/1.2mm |
| 15 | IP Rating | IP Rated 55 |
| 16 | Static Pressure force | Over 1000N |
Features:
1.Protect stumbling: Flush mounting on floor and protect children stumbling
2.IP55 :Connected with power supply over IP55 level.
3.Rotating modules mechanism: more plug top clearance.Furthermore, enhance lifetime receptacle .
4.Soft silica seal cable exit: Protect cable exit from scratching from cover plate of floor boxes.
Available for F type 45*45mm type or D type22.5*45mm international sockets or modules types:
Installation instructions:
- Remove the panel from the bottom box along with the electrical modules.
- Fix the flooring with spare screws on the bottom box and place it in the embedded hole.
- The flooring surface shall be at least level with the ground or 20mm below the ground.
- Remove flooring surface ,Insert the 10–12mm lead head into the terminal of floor box.
- Fix the panel to the bottom box with screws.
Attentions:
- Dispose of trash in bottom box and prevent dirt and debris from entering inside.
- The sealing ring is closely attached to the smooth surface to prevent water leakage.
- Prevent from alkaline corrosion and humidity.
- When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
- When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
- This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation
- Avoid acid alkaline solution flushing,avoid scratch of transparent protective paint,ensure corrosion resistance.
Advantages :
1.More Strong Scratch Resistance: Surface finish made from stainless steel or Brass by combination of tough material, Aluminum (ADC12) and shot blast finish on the surface achieves high scratch resistance.Stastic pressure over 1000N.
2.More higher IP protection: Reach IP55 protection level.As per IEC60529/EN60529 for low voltage device safety standards, IP55 mean the first digital No. of “ 5” for dust-tight enclosure protect this dust no more than diameter of 1mm entry and the second digital number of “5” for protect waterproof for splash entry into.
3.High quality socket receptacle:Using elastic phosphor copper avoids playing spark plug and plug set to bit dead ,ensure high conductivity and more life of pulling and plugging over 15000 times.PC+ABS(1.Modules fireproof : 850 degree C temp.; 2.Modules don’t distortion under 102 degree C temp.; 3.Stand under 15 degree C temp) ;Oxygen Insulation & Fire resistance in accordance with UL94 international standard.
4.Edible silicone gaskets with service life up to 10 years.
5.Long lifetime of push button: More than 5000 times of push button.
6.More heavy duty of bottom boxes:Thickness of bottom boxes is over 1mm.

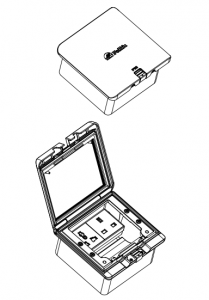

FD-777-B Outline drawing:
