| Serial No. | Parameter | Description |
| 1 | Product module | F6 |
| 2 | Panel Material | PC 94-V0 |
| 3 | Inside material | Tin phosphorous bronze |
| 4 | Surface finish | Glossy |
| 5 | Input voltage | 250v/AC 50~60Hz |
| 6 | Rated current | 16A |
| 7 | Color | customization |

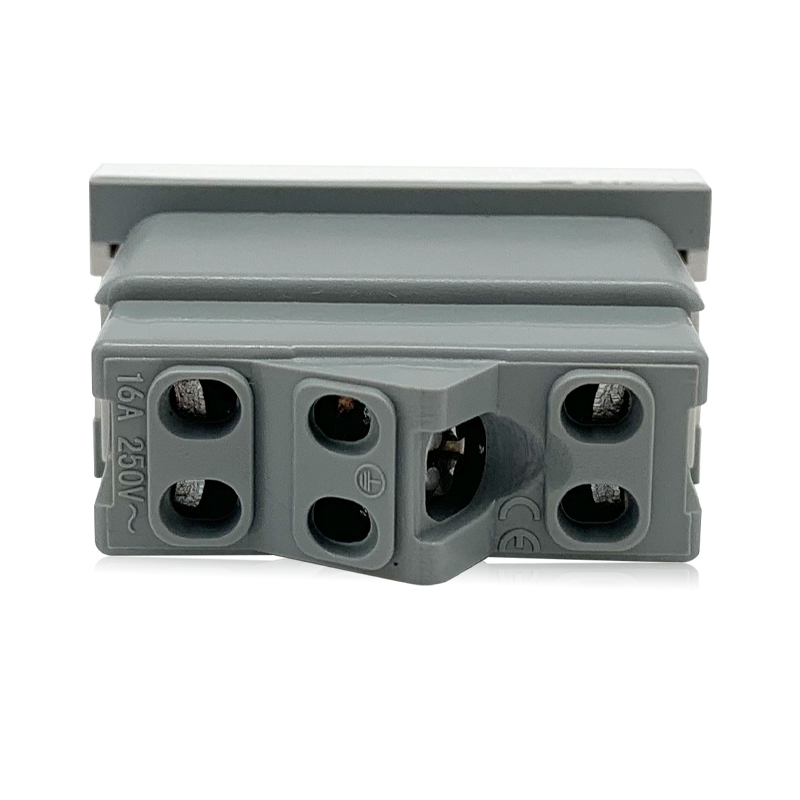

| 8 | Number of terminals | 2 screw terminals |

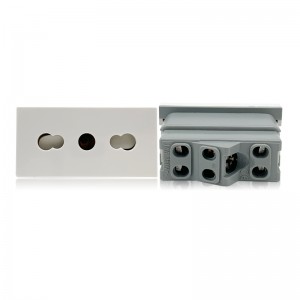

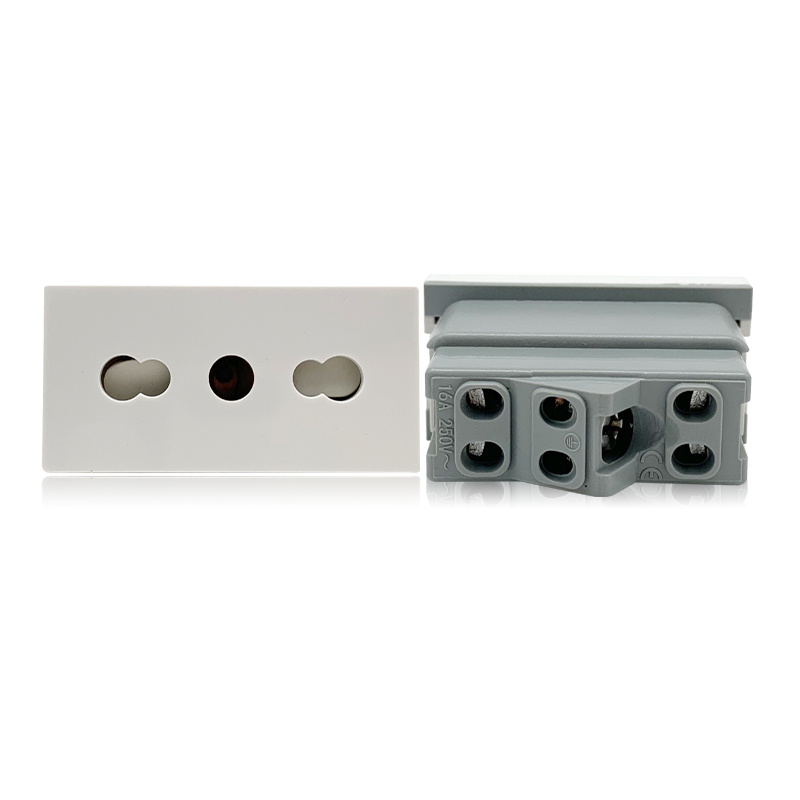

| 9 | Outlet | Italy chile sockets |
| 10 | IK degree of protection | IK04 |
| 11 | IP degree of protection | IP21 |
| 12 | Dimension of product | 22.5*45mm |
Environmental requirements
| Serial No. | Parameter | Description |
| 1 | Operating temperature | -10℃~+40℃;Operating |
| 2 | humidity | 20%~90% RH |
| 3 | Storage temperature | -20℃~+85℃;storage |
| 4 | humidity | 10%~95% RH |
| 5 | Resistance to pressure | ≥3Kv/AC 1min |
| 6 | Isolation resistance | 500v DC/100MΩ |
Application:
1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.

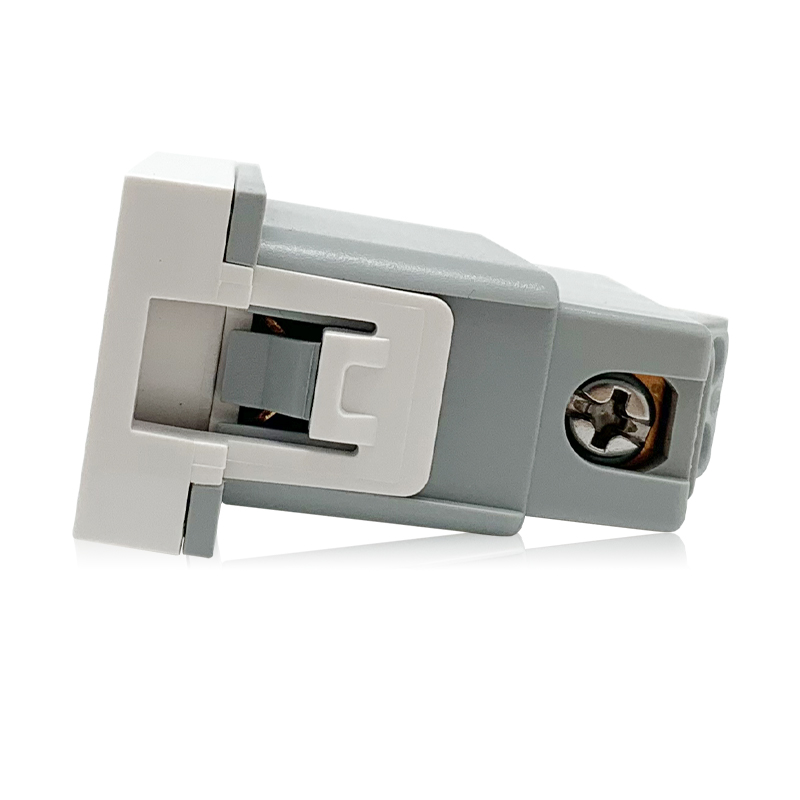

2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules：
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
2.More color with affordable MOQ.
3.CE Certificated and supply with support,frame and coverplate accessories etc.
3.Specification of Safewire IP44 pop up 45×45mm modules:
Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket
A)catagories of Safewire’s 45×45mm modules :
B)Safewire’s 45×45mm modules in cable management.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances:
1.tooless installation
2.Single，double，triple，multi-socket using the connection block
3.With optional safety key
4.With red，green，white finish for UPS，health sector or specific power supply.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances.
