USB Characteristic:
| Serial No. | Parameter | Description |
| 1 | Panel Material | PC 94-V0 |
| 2 | Inside material | Tin phosphorous bronze |
| 3 | Surface finish | Glossy |
| 4 | USB DC output | 4.2A/5V |
| 5 | Output voltage tolerance | ±5% |
| 6 | Output power | Max.21W |
| 7 | Service life in hours | 3000h 21W |
| 8 | Efficiency | 78% |
| 9 | No-load power consumption | Max 0.2W |
| 10 | Input voltage | 100~240v/AC 50~60Hz |
| 11 | Color | White RAL9003 Black |
| 12 | Number of terminals | 2 screw terminals |
| 13 | Electrical insulation class | Class II |
| 14 | IK degree of protection | IK04 |
| 15 | IP degree of protection | IP21 |

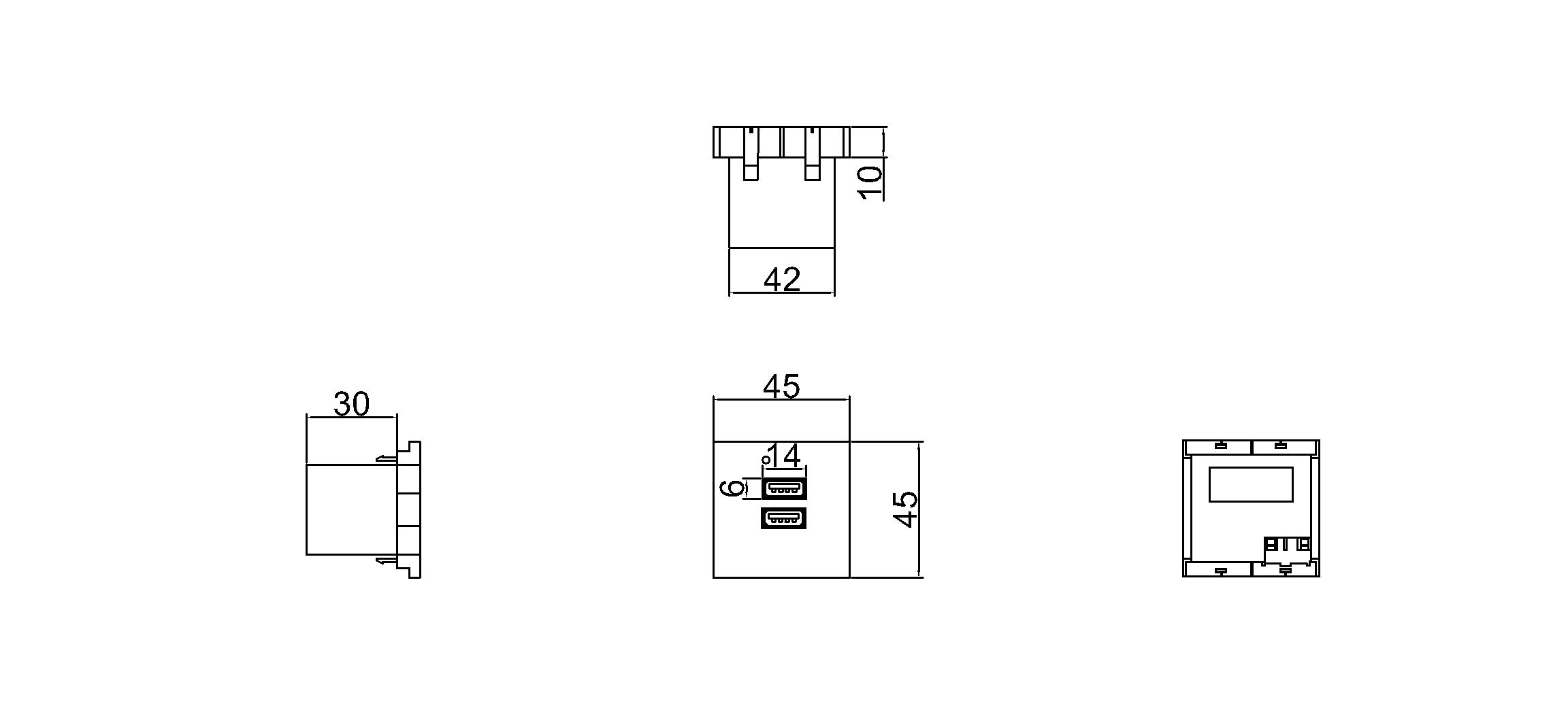

| 16 | Dimension of product | 45*45mm |
Application:
1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.
2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules：
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
2.More color with affordable MOQ.
3.CE Certificated and supply with support,frame and coverplate accessories etc.
3.Specification of Safewire IP44 pop up 45×45mm modules:
Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket
B)catagories of Safewire’s 45×45mm modules :
C)Safewire’s 45×45mm modules in cable management.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances:
